Kyoritsu KEW 1030 Compact Digital Multimeter CAT III 600V with LED Light
Kyoritsu KEW 1030 Compact Digital Multimeter CAT III 600V with LED Light is backordered and will ship as soon as it is back in stock.
Kyoritsu KEW 1030 Compact Digital Multimeter CAT III 600V with LED ...

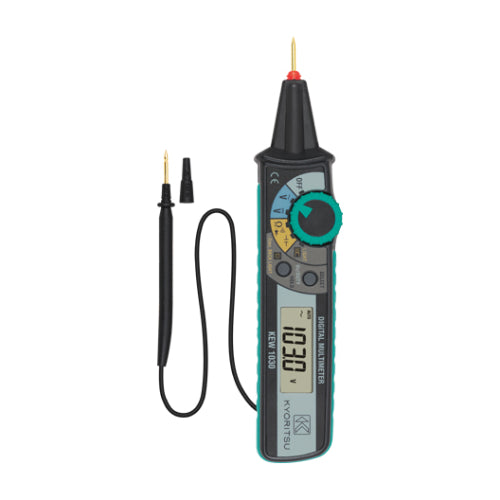

The Kyoritsu KEW 1030 Digital Multimeter is a compact and easy-to-use measuring instrument suitable for general electrical testing, maintenance, troubleshooting and field work.

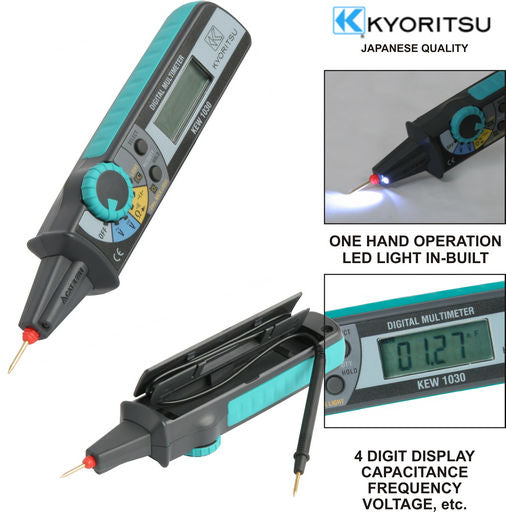

Its slim, lightweight design makes it comfortable to hold and carry, while the double-moulded body provides a secure feel in the hand. The built-in LED light helps illuminate the measurement point in dark areas, and the backlit LCD display improves visibility in low-light working conditions.
The KEW 1030 includes auto-ranging measurement for AC/DC voltage, resistance, capacitance and frequency, along with continuity buzzer, diode testing, duty ratio display and data hold function. Test leads can be neatly wrapped into the rear compartment, with adjustable lead lengths of 60 cm, 40 cm or 20 cm for convenient use and storage.
Key Features:
- Compact, lightweight digital multimeter
- Built-in LED light for working in dark locations
- Backlit LCD display for improved visibility
- Double-moulded body for comfortable handling
- Rear test-lead wrapping compartment
- Adjustable test lead length: 60 cm, 40 cm or 20 cm
- Measures AC/DC voltage, resistance, capacitance, frequency and duty ratio
- Continuity buzzer and diode test functions
- Data hold function
- Auto-ranging measurement
- CAT III 600V safety rating
Specifications:
- Product: Digital Multimeter
- Brand: Kyoritsu
- Model: KEW 1030
- DC Voltage: 400 mV / 4 V / 40 V / 400 V / 600 V auto range
- AC Voltage: 4 V / 40 V / 400 V / 600 V auto range
- Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ auto range
- Continuity Buzzer: Sounds at 120 Ω or less
- Diode Test: Approx. 0.3 to 1.5 V test voltage
- Capacitance: 50 nF / 500 nF / 5 µF / 50 µF / 100 µF
- Frequency: 5 Hz to 200 kHz
- Duty: 0.1% to 99.9%
- Data Hold: Yes
- Safety Standard: IEC 61010-1 CAT III 600 V
- Other Standards: IEC 61010-031, IEC 61326-1
- Power Source: LR44 / SR44 1.5 V × 2
- Dimensions: 190 L × 39 W × 31 D mm
- Weight: Approx. 100 g including batteries
